50% Off

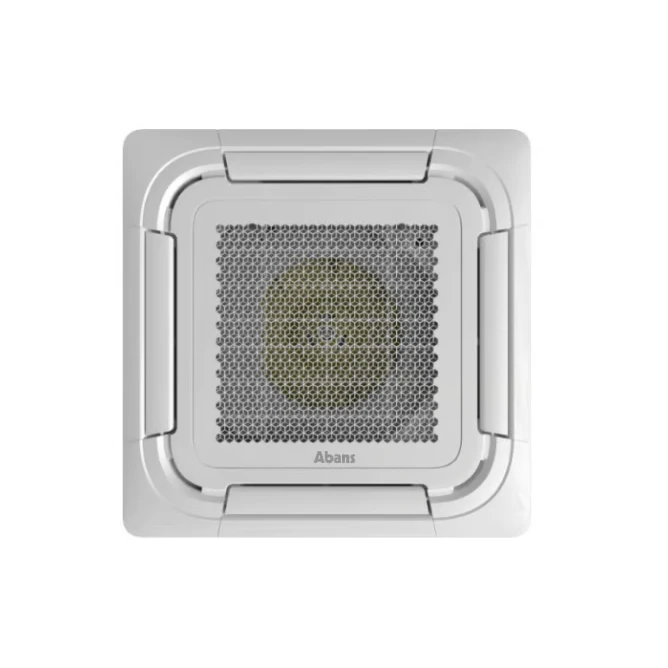

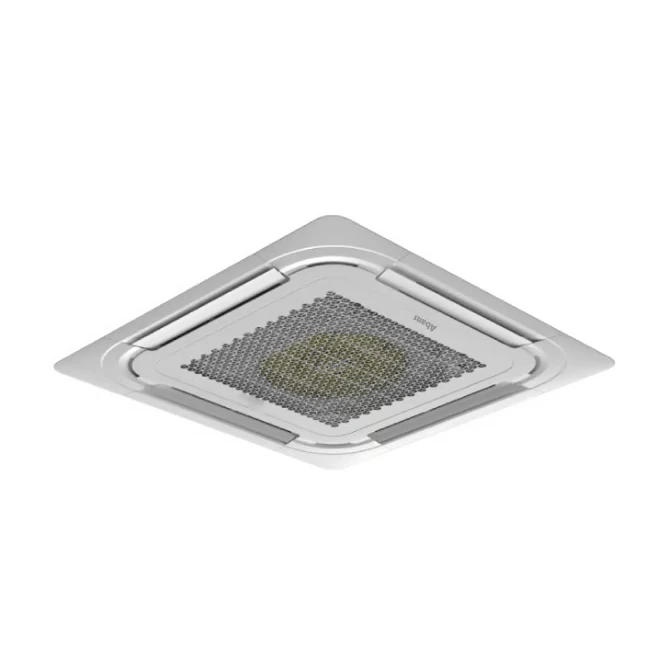

Abans 60000BTU Ceiling Cassette Air Conditioner

Model: ABCC-60CR

Rs. 1,382,990 Rs. 692,991

or 3 installments of Rs. 230,997 with

Warranty :

12 Months
1 Year Comprehensive Warranty & 5 Year for the Compressor. Please Note:- To obtain 5 Year Warranty, sign the service contract from 2nd to 5th year

Sold By :

AUTHORIZED SELLER - ABANS PLC

Quantity :

Delivery :

4 - 5 Working Days

Delivery Fee :

Rs. 0

Email me when available

BTU Calculator

Model			ABCC-60CR
Power supply		V-ph-Hz	380~415V~/3Ph/50Hz
Max. input consumption		W	8234
Max. input current		A	16.6
Cooling	Capacity	W	16000
	Capacity	Btu/h	54592
	Input	W	5694
	Current	A	10
	EER	W/W	2.81
Heating	Capacity	W	17500
	Capacity	Btu/h	59710
	Input	W	5814
	Current	A	10.30
	COP	W/W	3.01
Indoor fan motor	Model		YDK80-8-2
	Qty		1
	Input	W	174.0
	Capacitor	uF	4.0
	Speed(Hi/Med/Lo)	r/min	640/550/450

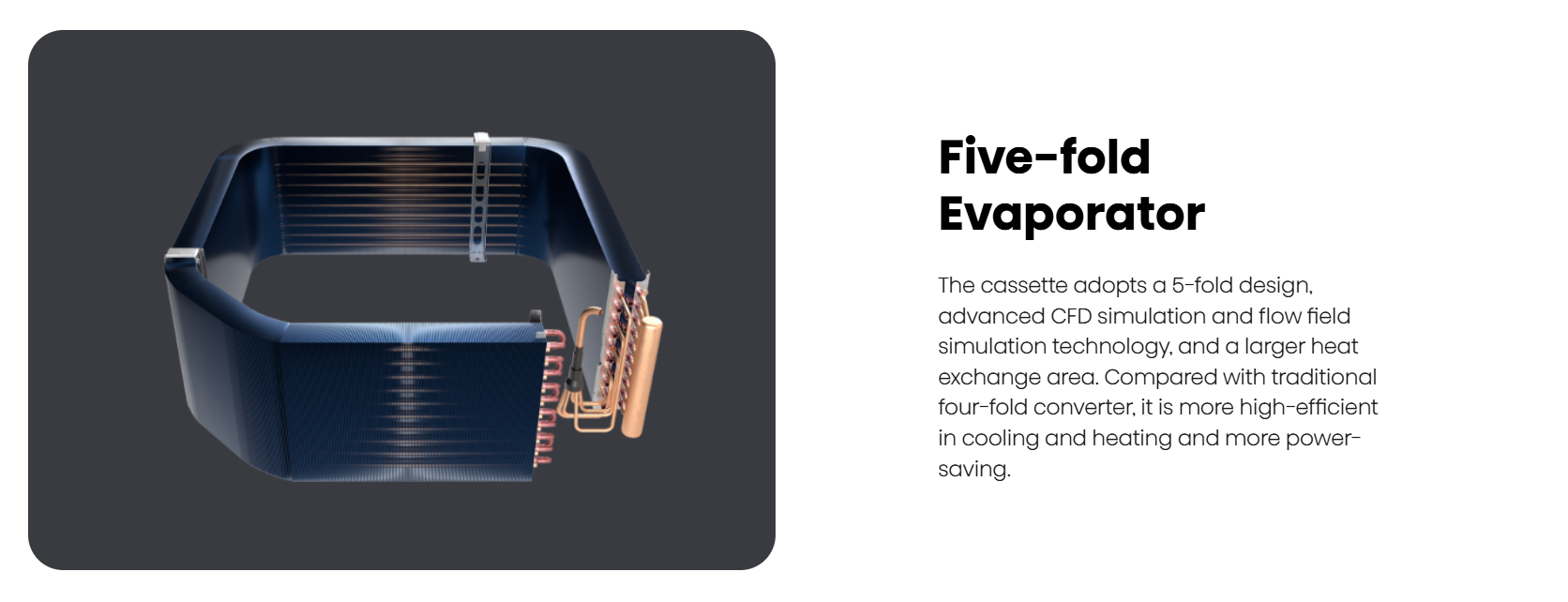

Indoor coil	Number of rows		3
	Tube pitch(a)xrow pitch(b)	mm	21×13.6
	Fin spacing	mm	1.5
	Fin type		Hydrophilic aluminium
	Tube outside dia.and type	mm	Ф7.0, innergroove tube
	Coil length x height x width	mm	1800×252×13.6+1865×252×13.6+1940×252×13.6
	Number of circuits		6
Indoor air flow Rated(Hi/Med/Lo)		m³/h	2000/1800/1600
Indoor air flow Rated(Hi/Med/Lo)		CFM	1176/1058/941
ESP	Rated	Pa	NA
ESP	Range	Pa	NA
Indoor noise level (Hi/Med/Lo)		dB(A)	50/45/42
Throttle type			NA

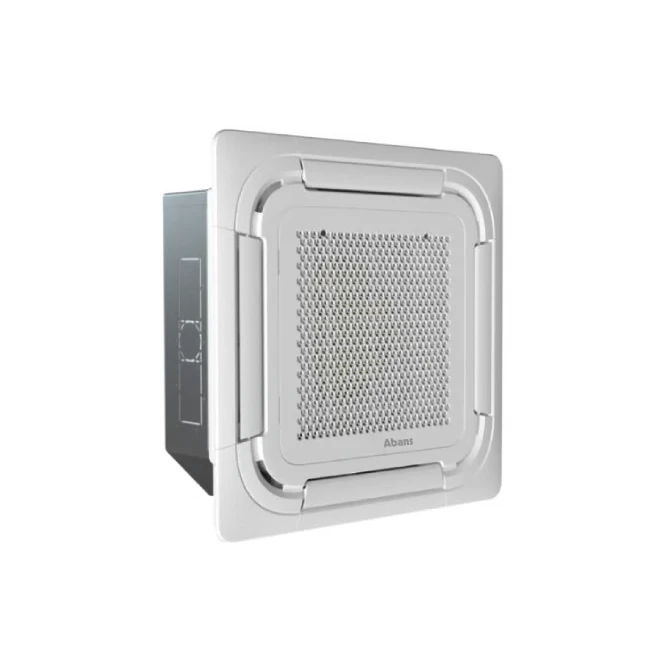

Indoor unit	Dimension (WxHxD)	mm	840x298x840
	Packing(WxHxD)	mm	996x420x956
	Net/Gross weight	kg	33/42
Design pressure		MPa	4.15/1.5
Drainage water pipe diameter		mm	dΦ32
Refrigerant piping	Liquid side/ Gas side	mm	9.52(3/8")/19.05(3/4")
Controller			Remote control
Operation temperature		℃	16～30
Room temperature	Cooling	℃	16～30
Room temperature	Heating	℃	16～30
Qty’per 20’ /40’ /40'HQ		Indoor	60/120/144
Compressor	Model		ATE650SC3Q9JK
	Type		ROTARY
	Brand		HIGHLY
	Capacity	Btu/h	55786.2
	Input	W	5450
	Rated current(RLA)	A	9.20
	Locked rotor Amp(LRA)	A	65.0
	Thermal protector position		INTERNAL
	Capacitor	μF	/
	Refrigerant oil	ml	α68HES-H/1600
Outdoor fan motor	Model		YDK65-6-9024/YDK65-6-9061
	Old Model		/
	Qty		2
	Input	W	145
	Capacitor	μF	4
	Speed	r/min	700/600/500
Outdoor coil	Number of rows		2
	Tube pitch(a)* row pitch(b)	mm	21×18.19
	Fin spacing	mm	1.5
	Fin type		Hydrophilic aluminium
	Tube outside dia.and type	mm	Ф7.0, innergroove tube
	Coil length * height * width	mm	970x1344x36.38
	Number of circuits		12
Outdoor noise level (sound pressure)		dB(A)	58
Throttle type			Capillary
Outdoor unit	Dimension(WxDxH)	mm	950x1386x340
	Packing(WxDxH)	mm	1110x1530x460
	Net/Gross weight	kg	106/116
Refrigerant type/Quantity	Type		R410A
Refrigerant type/Quantity	Charged volume	kg	3.10
Design pressure(H/L)		MPa	4.15/1.5
Refrigerant piping	Liquid side/ Gas side	mm(inch)	Φ9.52/Φ19.05(3/8"/3/4")
	Max. pipe length	m	50
	Max. difference in level	m	30
Ambient temperature	Cooling	℃	-15~43
Ambient temperature	Heating	℃	-10~24
Qty’per 20’ /40’ /40'HQ		Outdoor unit	26/53/53
Qty’per 20’ /40’ /40'HQ		Indoor+outdoor	24/47/47

Note

The above design and specifications are subject to change without prior notice for product improvement.

The value given in the table for noise level reflect in anechoic chamber.
