Abans Air Conditioner Inverter 36000BTU Cooling Only R32 Ceiling Cassette 1Phase
Model :
ABCCIN-36ACR32N -
Sold by : ABANS PLC
Rs. 829,990
Rs. 582,740
Monthly Installment Starting
from
Rs.9,712(view details)
or 3 installments of Rs.
194,247
with
Calculate BTU
:
Delivery Time
:
4 - 5 Working Days.
Delivery Fee
:
Rs. 0
We’ll let you know when this item is back in stock.
| Model | ABCCIN-36ACR32N | ||
| Indoor model | AUC-36TRERKA2 | ||
| Outdoor model | AUW-36TERK2 | ||
| Power supply | V-ph-Hz | 220-240V/50Hz/60Hz | |
| Max. input consumption | W | 4300 | |
| Max. input current | A | 19.0 | |
| Cooling (Declare value for Thailand) |
Capacity | Btu/h | 36176 |
| Capacity | W | 10600 | |
| Capacity range | W | 2730-11500 | |
| Input Power | W | 3150 | |
| Input Power range | W | ||
| Current | A | 14.3 | |
| EER | W/W | 3.37 | |
| SEER | / | 19.00 | |
| Indoor fan motor | Model | / | ZW511B500062 |
| Qty | / | 1 | |
| output | W | 101 | |
| Capacitor | uF | / | |
| Speed(Hi/Med/Lo) | r/min | 660/560/480 | |

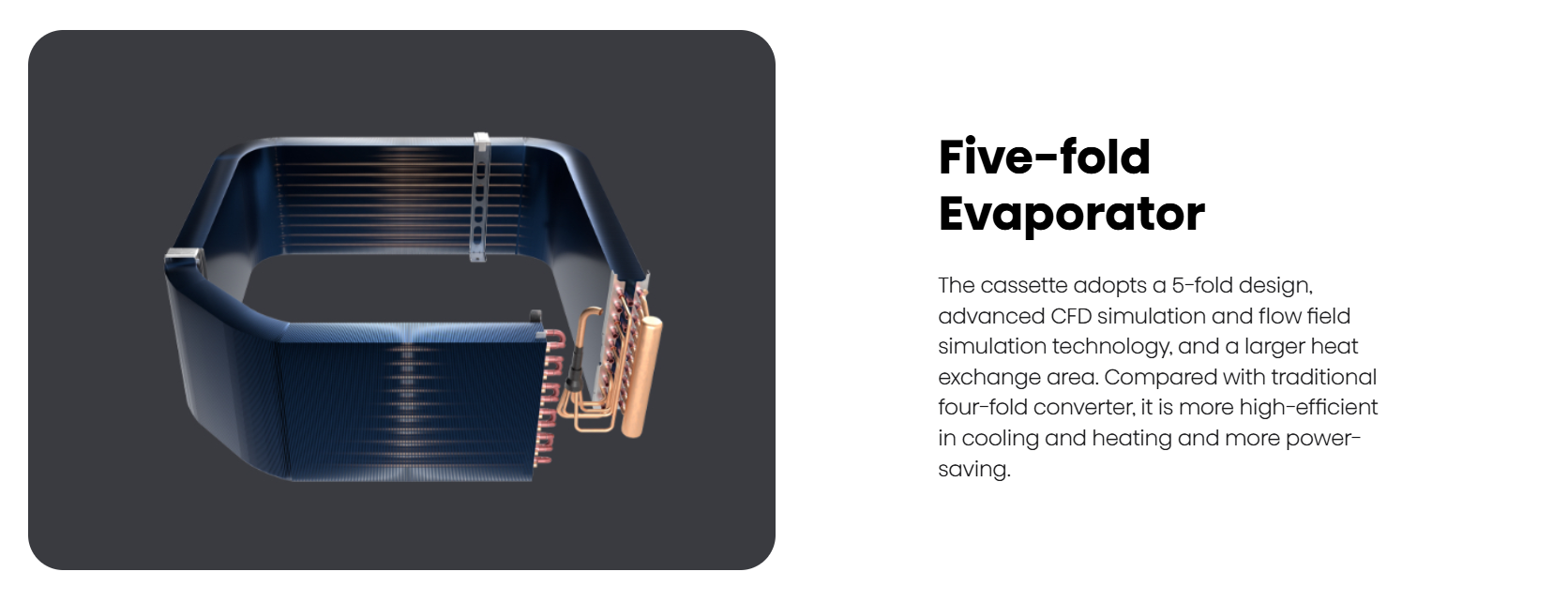

| Indoor coil | Number of rows | 3 | |
| Tube pitch(a)×row pitch(b) | mm | 21×13.6 | |
| Fin spacing | mm | 1.5 | |
| Fin type | Hydrophilic aluminium | ||
| Tube outside dia.and type | mm | 7, innergroove tube | |
| Coil length×height×width | mm | 2096×231×40.8 | |
| Number of circuits | 5 | ||
| Indoor air flow Rated(Hi/Med/Lo) | m3/h | 1650/1450/1200 | |
| Indoor air flow Rated(Hi/Med/Lo) | CFM | 970/853/706 | |
| Indoor noise level Rated (Sound pressure) (Hi/Med/Lo) | dB(A) | 50/47/43 | |
| Indoor unit | Dimension (WxHxD) | mm | 840×272×840 |
| Packing(LxWxH) | mm | 950×950×360 | |
| Net/Gross weight | kg | 26/32 | |
| Panel | Dimension (WxHxD) | mm | 950×50×950 |
| Packing(LxWxH) | mm | 1020×1000×105 | |
| Net/Gross weight | kg | 6.5/9.0 | |
| Drainage water pipe diameter | mm | ODΦ32 | |
| Operation temperature | 16~30 | ||
| Compressor | Model | KTM240D43UMT | |
| Type | ROTARY | ||
| Brand | GMCC | ||
| Capacity | Btu/h | 26477 | |
| Input | W | 7760 | |
| Rated current(RLA) | A | 9.3 | |
| Refrigerant oil | ml | ESTER OIL VG74 620 | |
| Outdoor fan motor | Model | ZWB278L46A | |
| Qty | 1 | ||
| output | W | 102 | |
| Capacitor | μF | / | |
| Speed | r/min | 880 | |
| Outdoor coil | Number of rows | 2 | |
| Tube pitch(a)×row pitch(b) | mm | 21x21.65 | |
| Fin spacing | mm | 1.5 | |
| Fin type | Hydrophilic aluminium | ||
| Tube outside dia.and type | mm | 7.94, innergroove tube | |
| Coil length×height×width | mm | 975×714×43.3 | |
| Number of circuits | 5 | ||
| Outdoor noise level Rated (Sound pressure) Hi | dB(A) | 58 | |
| Throttle type | EEV | ||
| Outdoor unit | Dimension(WxHxD) | mm | 900×750×340 |
| Packing(LxWxH) | mm | ||
