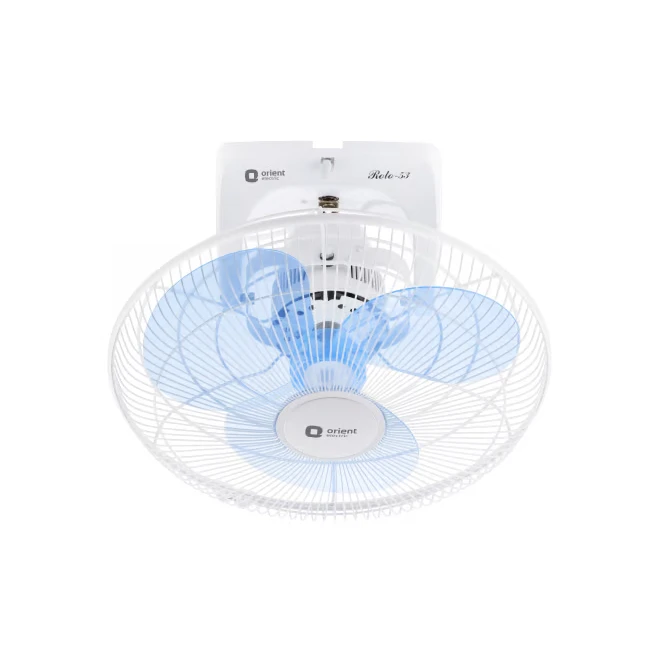

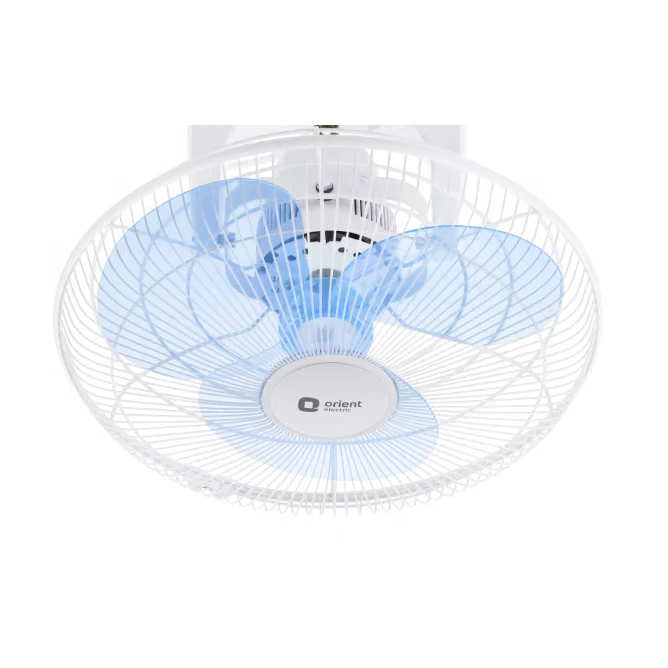

Orient Electric 16 inch Roto 53 Orbit Fan - White
Model :
ROTO53 -
Sold by : ABANS PLC
Rs. 22,990
Rs. 13,930
Monthly Installment Starting
from
Rs.290(view details)
or 3 installments of Rs.
4,643
with
Warranty
:
24 Months
Delivery
:
4 - 5 Working Days
Delivery Fee
:
Rs. 0
-
Orbital Oscillation: The fan's unique orbital movement allows it to cover a wider area, ensuring more effective cooling.
-
Powerful Air Delivery: Equipped with a robust motor, it offers powerful air delivery to keep you cool, even on the hottest days.
-
Stylish Design: Its sleek and modern design fits seamlessly into any room decor, providing both functionality and style.
-
Durable Build: Made with high-quality materials for long-lasting performance and reliability.
-
Energy Efficient: Designed to consume minimal power, ensuring cost-effective cooling without compromising on performance.
|
Model Name |
Roto 53 |
|
Blade sweep in mm |
400mm ± 5mm |
|
Voltage range / Frequency |
220-240V, 1-ph, a.c., 50 Hz. |
|
Test Voltage |
230V, 1-ph, a.c., 50 Hz. |
|
Starting Voltage |
Max. 187 Volts at low speed point |
|
No. of Poles |
4 |
|
Speed at test voltage (RPM) |
1300 ± 5% |
|
Power consumption at test voltage |
63W +10% |
|
Air Delivery (m3/minute) at test voltage |
80 ± 10% |
|
Power Factor |
Above 0.9 |
|
Speed Regulation |
2 speed & off position |
| (with external regulator) | |
|
Angle of oscillation |
360° (orbital). Two cyclic path of 30 and 50 with vertical axis. |
|
Blade material |
Metal - Aluminium |
|
Bracket/Switchbox material |
Plastic |
|
High Voltage Test |
1.5 KV for one minute |
|
Insulation Resistance |
2 MΩ at 500V DC (Minimum) |
|
Insulation Type |
Class B |
|
Leakage Current |
Max. 210 μA (RMS) |
|
Temperature Rise |
75°C (Max.) |
|
Earthing connection |
Provided |
|
Mechanical Endurance test (for switch in regulator) |
10000 cycles |
|
Special Features |
99.9% Pure Copper wire used in motor winding |
|
|
Motor protection with Thermal Overload Protection device with auto reset. |
|
|
Powder coated guard gives extra protection & longer life |
|
|
Sintered Bronze Bush |
|
Packing System |
UNIT |
|
Packing box size (L*W*H) in mm |
457*270*460 |
|
Fan Colour |
Crystal White |
